Materials Procurement
Shipbuilding & Marine equipment Procurement
HESCO offers the full range of Shipbuilding & Marine equipment Procurement which are tailored to meet the evolving needs of our clients and associates. We have the capability to provide all these services locally and globally.
1. Supply of Shipbuilding Materials/ Equipments:
- Steel Plates & Profiles
- Piping Materials & Hull Outfitting Materials
- Deck Machinery & On-deck Equipment including Pumps
- Other Bulk Materials and Consumables
Steel Plates & Profiles
STEEL PLATE
| Thickness (mm) |
Width (mm) |
Length (mm) |
Class | Grade |
| 6 ~ 150 | 1,500 ~ 4,500 | 6,000 ~ 22,000 | ABS, KR, NK, DNV, LR, GL, BV, CCS RINNA | SS400, SM490A, SM490B, A, B, D, E, AH32, AH36, DH32, DH36, EH32, EH36 |
H-BEAM
| Size (mm) |
Grade | Length |
| 100 * 100 ~ 400 * 400 | SS400 | 10 Meters |
ROUND BAR
| Diameter (mm) |
Grade | Length |
| 6 ~ 200 | S20C, S45C, SCM420, etc | More than 6 Meters |
ANGLE
| EQUAL (mm) |
UNEQUAL | INVERTED | LENGTH |
GRADE |
| 25*25 ~ 250*250 | 90*75 ~ 150*100 | 200*90 ~ 400*100 | 6 ~ 16 | SS400, SM490A, SM490B, A, B, D, E, AH32, AH36, DH32, DH36, EH32, EH36 |
BILLET
| Size (mm) |
Quality | Chemical Composition |
100 X 100 Length : 6M, 9M, 12M |
3SP/PS According to GOST 380-94 | C 0.24-0.29 SI 0.15-0.55 MN 1.1-1.8 P 0.04 (MAX) S 0.04(MAX) |
Piping Materials & Hull Outfitting Materials
Expansion Bellows
 |
 |
 |
 |
 |
||||||||
| MODEL | AR series | Ud series | AC series | AS series | Unit type | |||||||
2. Supply of Machine & Consumables for shipbuilding:
- Welding Machines & Consumables
- Painting Machines & Consumables
- Work tools and & Consumables
Welding Auto Carriage
| |
|
|
|
|
||||||||

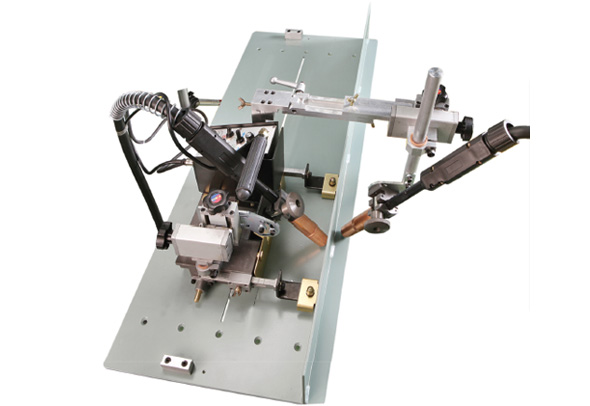

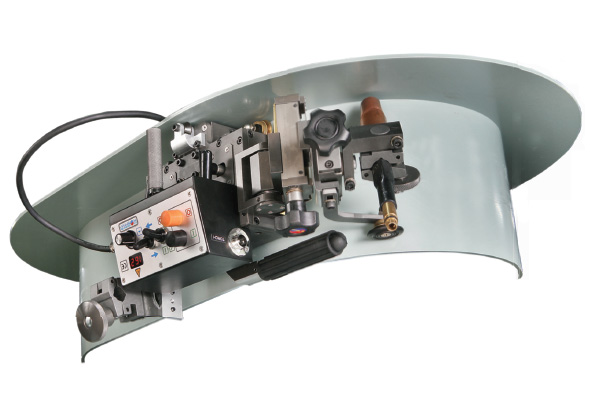

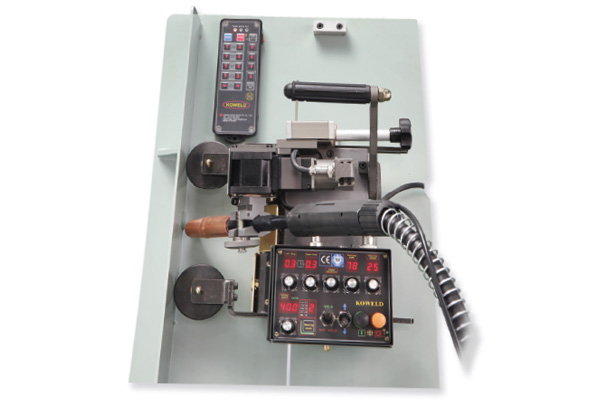

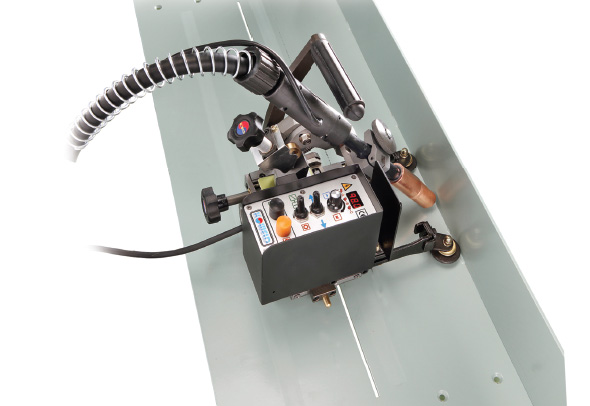

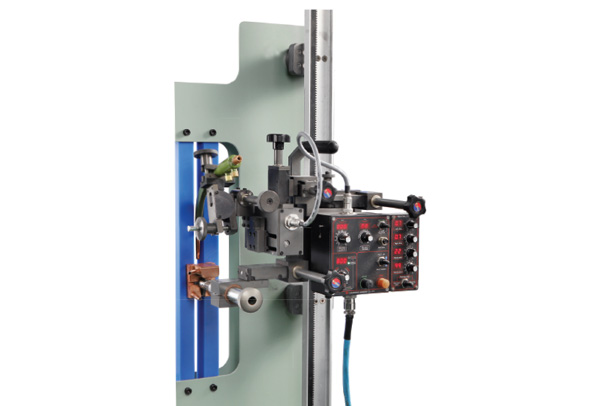

| MODEL | CS-71 | CS-51 | CS-51WE | CS-EGW | CS-COAMING | |||||||
| Postion | A | H.Fillet | H.Fillet | V.Fillet | V.Butt | H.Fillet | ||||||
| No of Torch | ea | 1 | 2 | 1 | 1 | 1 | ||||||
| Input Voltage | V | AC 110-240 | AC 110-240 | AC 110-240 | AC 110-240 | AC 110-240 | ||||||
| Driving Method | 4Wheels-driven | 4Wheels-driven | 4Wheels-driven | Rack-Pinion driven | 4Wheels-driven | |||||||
| Traction Power | kg | 20 | 16 | 20 | with Rail | 25 | ||||||
| Up/Down Angle | %c | 45±10 | 45±10 | 45±10 | 45±10 | |||||||
| Running Angle | % | ±5 | ±5 | ±5 | ±5 | |||||||
| Traveling Speed | s | 0-98 cm/min | 0-98 cm/min | 0-88 cm/min | 0-80 cm/min | 0-98 cm/min | ||||||
| Magnetic Power | kg | 32 | 24 | 32 | 30 | |||||||
| Dimension | mm | 198W*314L*281H | 305W*248L*299H | 332W*309L*237H | 404W*293L*257H | 359W*331D*300H | ||||||
| Weight | Kg | 5.6 | 8 | 9.2 | 9.2(Body) | 9.7 | ||||||
